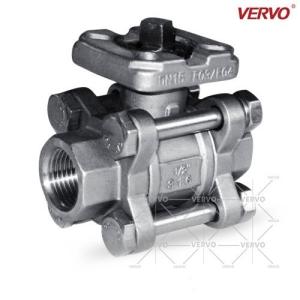

Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15
Product Description
Three-Piece High Cycle Direct Mount Ball Valve
Product Feature
Oval handle
Cavity filled seats
Polish to custom's specification
ASME/ BPE (for SS316L)
low ferrite ( 3%)
low sulphur (0.005% to 0.017%)
Automation application
PTFE/ PFA coating (40-70 um)
Hastalloy C/ Super duplex/ Alloy 20/ Monel
Product Specification / Models
Body & end caps quality investment casting
with High Cycle Direct Mount
Adjustable stem packing
Available in stainless steel or carbon steel
Blow-out proof stem design
100% air tested under water at 80-100 psi
Working pressure: 1000/ 800/ 600 psi
Temperature range (PTFE) -20F to 350F
Temperature range (TFM) -20F to 420F
with locking function
End type: T-Clamp, Tube weld, Extended tube weld
6 bolts & nuts for 4" valve
Other Information
VERVO Three-Piece High Cycle Direct Mount Ball Valve is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
The options on end types can be T-Clamp, Tube weld end, Extended tube weld end. Different material of soft kits will be applicable for different working circumstance.
ASME/ BPE (for SS316L) standard are available on 302SD, with low ferrite ( 3%), and low sulphur (0.005% to 0.017%). The finish are available for Ra 40 uin or Ra 25 u-in.
The standard bare stem type is well designed for mounting actuator directly. VERVO offer pneumatic/ electric actuator and limit switch box/ solenoid valve/ modulating controller....assembling without further charge.
